| 型號 | TD800 | TD1000 | 2x1350w | |
|---|---|---|---|---|
| 8Ω立體聲功率 | 2X800W | 2X1000W | 2X1350W | |
| 4Ω立體聲功率 | 2X1550W | 2X1950W | 2X2400W | |
| 8Ω橋接功率 | 1650W | 2100W | 2500W | |

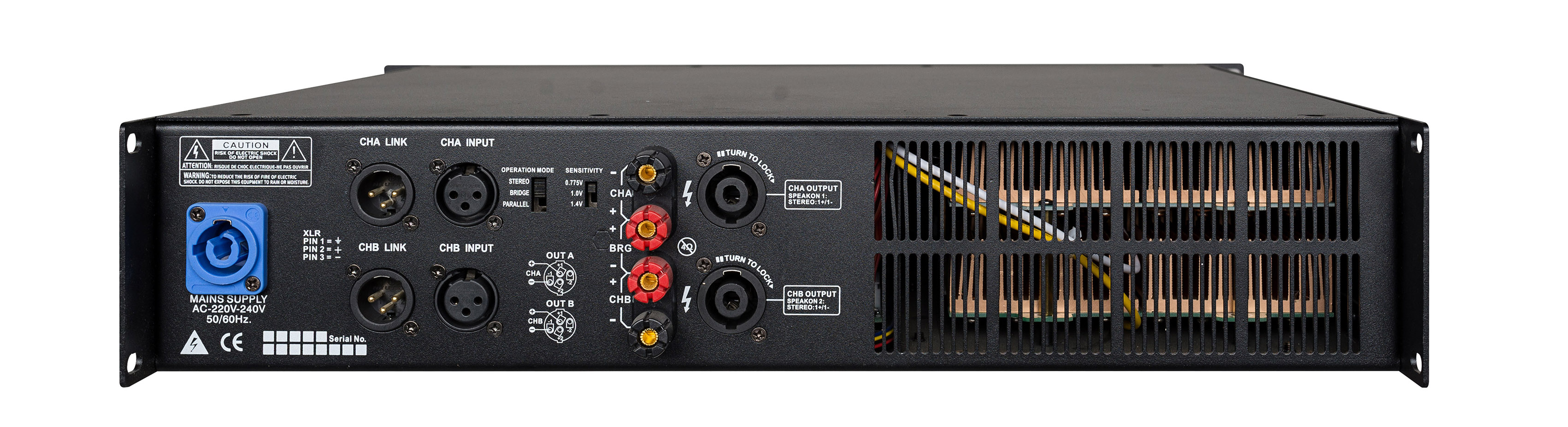

| 輸出插座 | 4 Speakon Connectors | |||
| 頻響 |
20Hz-20KHz (+0/-0.3dB)@1W
|
|||
| 信噪比 |
＞95dB
|
|||
| 總諧失真 |
<0.05%20Hz-20KHz
|
|||
| 輸入插座 | <0.1% | |||
| 連接插座 | ||||
| 阻尼系數 | Rear Panel:0.775V/1.0V/1.4V | |||
| 輸入阻抗 | 20KΩ balanced / 10KΩ unbalanced | |||
| 輸入增益 | Rear Panel:0.775V/1.0V/1.4V | |||
| 風扇 | 2 PCS temperature control cooling Fan | |||
| 功效保護 | Protection of short circuit,open circuit,overheat,DC,super sonic frequency etc | |||
| 前面板指示 | Protect indicator,signal indicator,work indicator | |||
| 電源要求 | 200-240v~50-60Hz | |||
| 機身 | 490 x 470 x 90mm | |||
| 運輸尺寸 | ||||
| 凈重 | 20KG | 21KG | 23KG | |
| 毛重 | 22KG | 23KG | 25KG | |
