| Model | FP10000Q | |||
|---|---|---|---|---|
| 8ΩStereo Power | 4 x 1350W | |||
| 4ΩStereo Power | 4 x2150W | |||
| Channels | 4 | |||

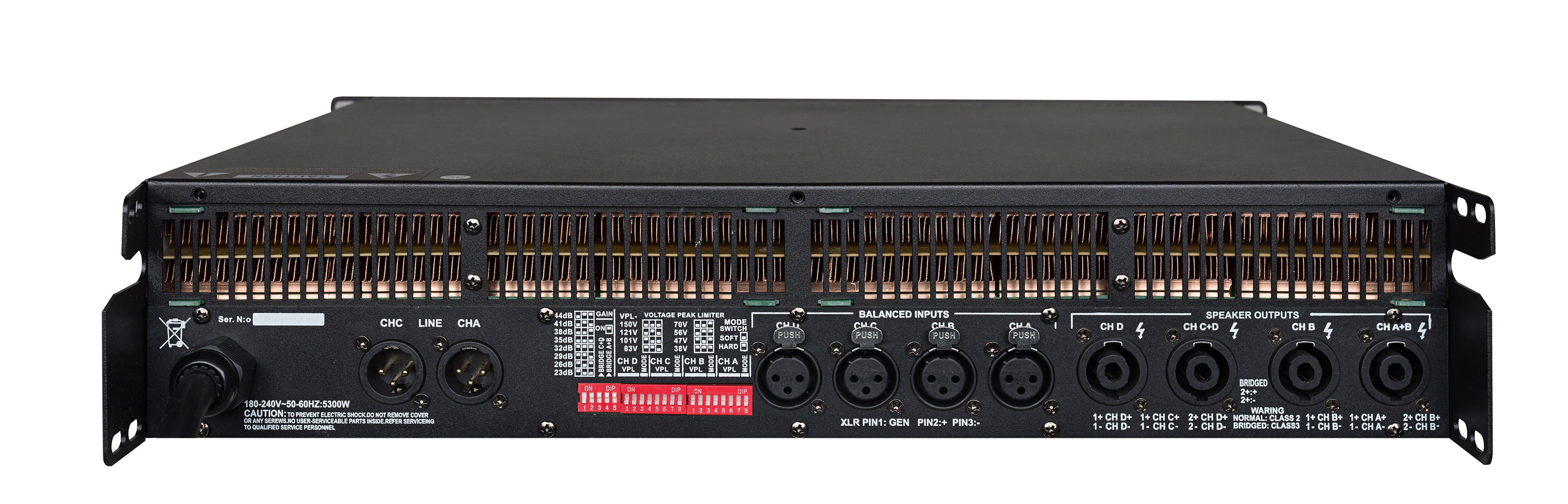

| Outputs Connectors | Speakon Connectors | |||
| Frequency Respinse |
20Hz-20KHz(+0/-0.5dB)
|
|||
| Signal Noise Ration(dB) |
23dB/26dB/29dB/32dB/35dB/38dB/41dB/44dB
|
|||
| THD+N(rated power,40/KHz)% |
<0.05%20Hz-20KHz
|
|||
| Input Lmpedance | 20K Ω balanced / 10K Ω unbalanced | |||
| Input Gain | Rear Panel:0.775V/1.0V/1.4V | |||
| Fan | 4PCS temperature control cooling Fan | |||
| Protection | Protection of short circuit,open circuit,overheat,DC,super sonic frequency etc | |||
| Indicators(per Channel) | Protect indicator,signal indicator,work indicator | |||
| Power Requirement | 200-240v~50-60Hz | |||
| Dimensions |
480X410X90mm
|
|||
| Transport Dimension | ||||
| Net Weight | 15KG | |||
| Gross Weight | 17KG | |||
